Лучшие волоконные лазерные резаки с ЧПУ

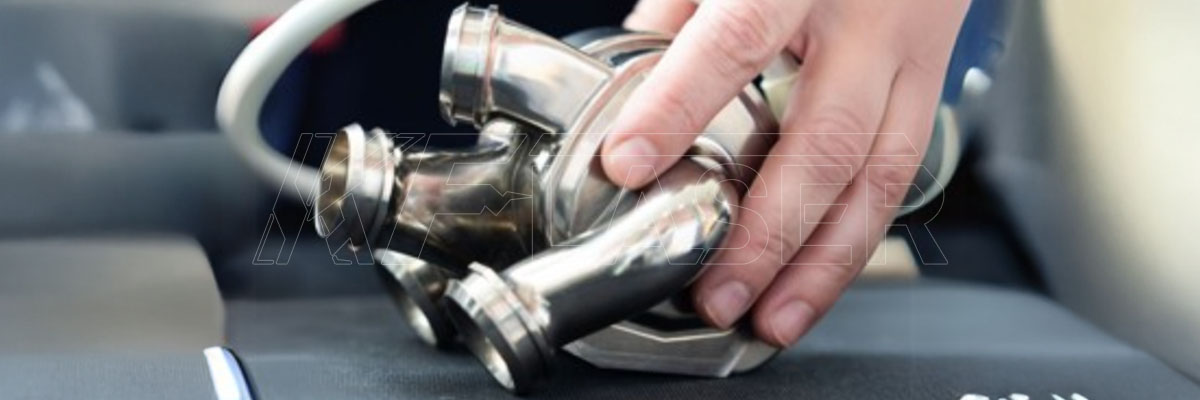

The best CNC fiber laser cutting machine slices through armored plating like warm butter, carves titanium heart valves with 0.005mm tolerance, and transforms raw metal coils into electric vehicle chassis overnight. Choose wrong, and you’ll hemorrhage $500/hour in botched cuts, scrapped materials, and production downtime. This isn’t another spec sheet regurgitation – it’s your tactical field manual for navigating the photon warfare landscape.

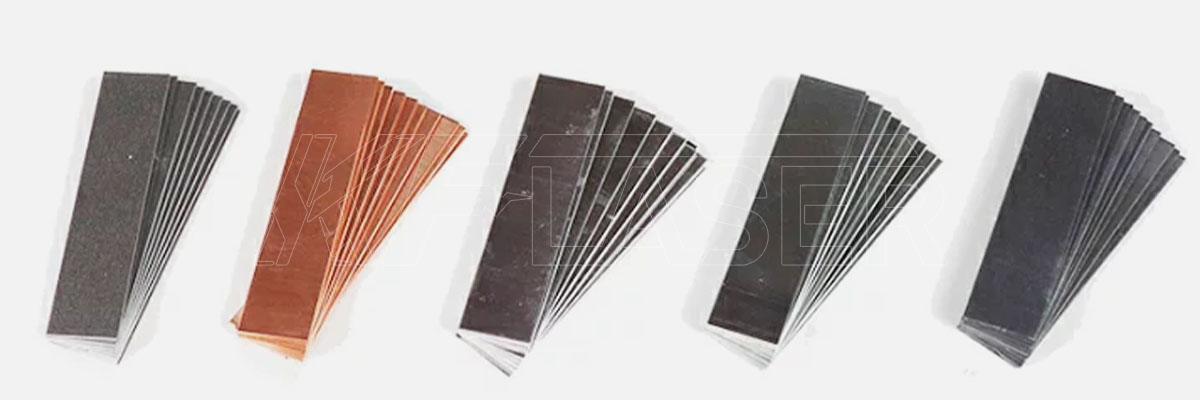

The Power Matrix
Cutting Capability Spectrum
Thin-Sheet Dominance (<6мм):
- Speed Threshold: 100m/min at 1kW
- Gas Protocol: Nitrogen purity ≥99.95%
- Precision Benchmark: ±0.03mm positional accuracy
Mid-Range Mastery (6-20мм):
- Beam Delivery: 30μm fiber core diameter
- Pierce Time: <0.8 seconds for 15mm carbon steel
- Помощь газом: Oxygen at 15bar for exothermic boost
Heavy-Plate Siege (>20мм):
- Power Requirement: 12kW+ with adaptive beam shaping
- Nozzle Tech: 3-stage tapered design
- Система охлаждения: 24°C chiller temperature stability
Power vs. Material Throat Chart
Мощность лазера | Углеродистая сталь | Нержавеющая ставка | Алюминий |
3кВт | 0-15мм | 0-10мм | 0-8мм |
6кВт | 0-25мм | 0-18мм | 0-15мм |
12кВт | 0-40мм | 0-30мм | 0-25мм |
Precision Warfare Systems
Motion Control Arsenal
- Linear Drive Tech: 3G acceleration, 0.001mm repeatability
- Collision Avoidance: 360° LiDAR scanning at 100Hz
- Thermal Compensation: 0.01mm/°C distortion correction
Accuracy Standards by Industry
Sector | Kerf Tolerance | Surface RA | Perf Speed |
Аэрокосмическая промышленность | ±0,02 мм | <0.8мкм | 800 holes/min |
Medical | ±0,01 мм | <0.5мкм | 1200 holes/min |
Автомобильная промышленность | ±0,05 мм | <1.2мкм | 600 holes/min |
Covert Performance Killers
Hidden Spec Decoder
- Beam Parameter Product (Бпп):
- <2.5 mm-mrad for micro-cutting
- 0 mm-mrad for thick plates
2. Modulation Depth:
- 500ns pulse rise time for copper
- 1μs minimum for reflective alloys
3. Fiber Degradation Rate:
- <0.5% power loss per 1,000 часы
Maintenance Failure Points
Component | Critical Metric | Replacement Cost |
Режущая голова | 8,000 hour lifespan | $18,000 |
Focus Lens | 300 hour coating life | $2,500 |
Fiber Cable | 50,000 bend cycles | $9,800 |
Automation Battlefield
Unmanned Production Tactics
- Pallet Systems: 120-second material swap
- Nozzle Changers: 7-second automatic swap
- Scrap Ejection: 90kg/min conveyor removal
Downtime Reduction Matrix
Feature | Setup Time | Impact |
Auto Focus | 0 секунды | 98% reduction |
Material Sensor | 12 секунды | 83% reduction |
AI Nesting | 18 секунды | 79% reduction |
Cost of Ownership Warfare
5-Year Financial Recon
- Energy Consumption: 0.8 kW/h per operating hour at 6kW
- Gas Expenditure: $18/hour for nitrogen cutting
- Consumable Drain: $43/day for lenses/nozzles
ROI Projection Comparison
Machine Tier | Initial Cost | 5-Year Operating Cost | Breakeven Point |
Entry (3кВт) | $150,000 | $310,000 | 14 месяцы |
Mid (6кВт) | $280,000 | $520,000 | 18 месяцы |
Industrial (12кВт) | $520,000 | $890,000 | 22 месяцы |
Photon Delivery Architecture
Beam Path Engineering
- Fiber Coupling Efficiency: >98% transmission rate
- Collimation Optics: 150mm focal length standard
- Process Monitoring: 20,000 Hz plasma detection
Cutting Head Specifications
Parameter | Standard | High-Performance |
Focus Range | 0-200мм | 0-300мм |
Nozzle Change | Manual | 4-second auto |
Cooling | Air-cooled | Liquid-cooled |
Software Command Center
Digital Twin Integration
- Nesting Efficiency: 92% material utilization
- Predictive Maintenance: 98% failure anticipation
- Cloud Analytics: Real-time global benchmarking
Cutting Parameter Database
Материал | Thickness | Власть | Скорость | Газ |
Мягкая сталь | 10мм | 4кВт | 2.4м/мин | O₂ |
Алюминий | 8мм | 3.5кВт | 3.1м/мин | N₂ |
Латунь | 5мм | 2.2кВт | 4.8м/мин | Air |
Factory Floor Integration
Installation Combat Rules
- Требования к питанию: 60kVA ±5% voltage stability
- Floor Load: 1,500kg/m² minimum
- Exhaust Flow: 6,000m³/hour extraction
Environmental Red Lines
Фактор | Tolerance | Failure Consequence |
Ambient Temp | 15-30°C | Beam drift |
Humidity | <70% | Lens condensation |
Dust Level | ISO Class 6 | Optical contamination |
Future Photon Frontiers
2028 Technology Forecast
- Multi-Beam Systems: Simultaneous cutting at 4 points
- Quantum Cooling: Zero-wait chiller recovery
- Self-Healing Optics: Ceramic lens regeneration
Emerging Material Threats
- Carbon-fiber composites requiring 1070nm wavelength
- Refractory metals needing 400W/mm² intensity
- Functionally graded materials demanding real-time parameter shifting
“Modern fiber lasers don’t cut metal – they vaporize molecular bonds with picosecond precision,” observes Dr. Aris Thorne, photonics engineer. “But that power becomes useless without military-grade motion systems.”
Tactical Acquisition Protocol
Supplier Vetting Checklist
- Factory Certification: ИСО 9017:2025 compliance
- Component Traceability: Semiconductor-level lot tracking
- Uptime Guarantee: 95% operational SLA
Acceptance Test Parameters
Test | Standard | Rejection Threshold |
Positional Accuracy | ИСО 10791-7 | >0.015mm deviation |
Beam Circularity | DIN 32567 | <92% roundness |
Pierce Consistency | ASTM E2906 | >0.1s variance |
Implementation Timeline
Phase | Duration | Critical Path |
Site Prep | 10 Days | Power/air/gas infrastructure |
Установка | 5 Days | Foundation leveling <0.02mm/m |
Calibration | 3 Days | Beam alignment ±2μm |
Validation | 2 Days | Test cuts on 5 materials |
Final Photon Command: “The true best CNC fiber laser cutting machine reveals itself not in showroom demos, but in year three of relentless production – where maintenance costs and cutting consistency separate warriors from casualties.”
