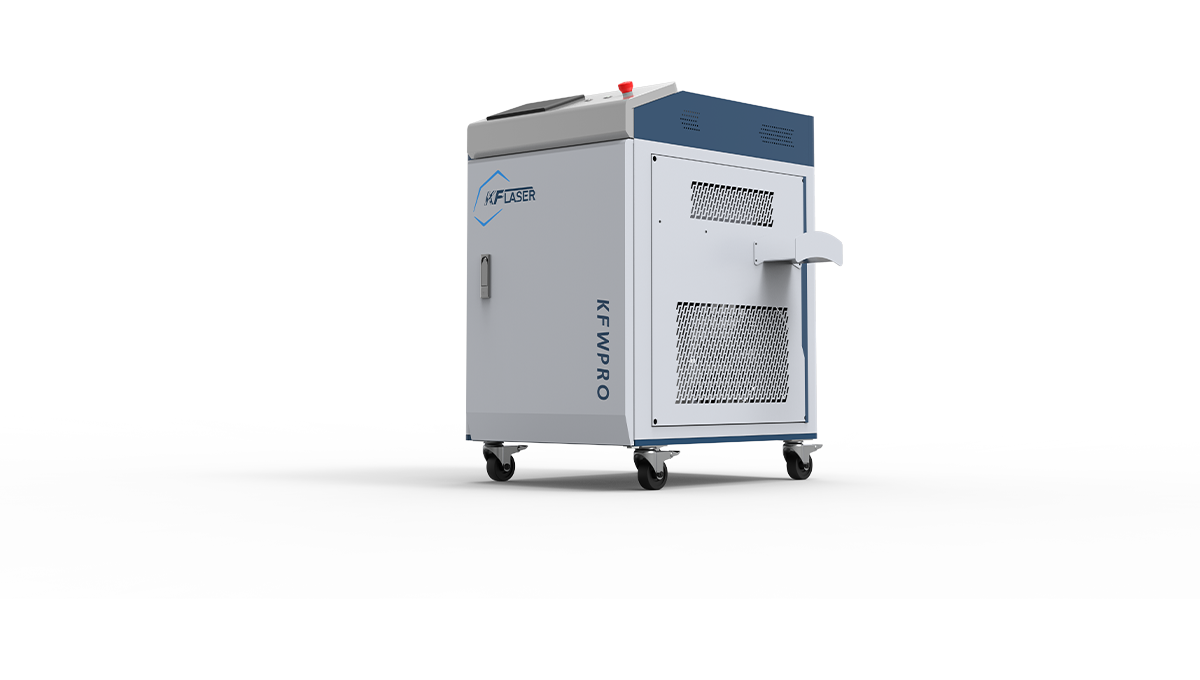

Made of high-quality sheet metal, it provides a solid structure and excellent durability.
The magnetic sliding door and hidden side handles make operation easier and more beautiful.
Equipped with LED flashing prompt, clearly indicating the device status, convenient operation and confirmation function.Each button represents the main function, easy to operate, and reduce the possibility of misoperation.
The fiber optic cable is wrapped in suede leather, which provides better durability and waterproof performance than rubber or tarpaulin.
Dust resistance: The vents are equipped with double-layer dust-proof mesh and cowhide sealing to prevent dust from entering, protect the internal circuit, and reduce maintenance requirements.
Machine Model | KFW Series |
Laser Power | 1500W/2000W/3000W |
Dimension | 1550*800*1350MM |
Weight | 260KG |
Laser Wavelength | 1070NM |
Auto wire feeder | Including |
Cooling type | Water cooling |
Spot adjusting range | 0.1-3mm |
Repeating Precision | ±0.01mm |
Working voltage | 220v 1PH/ 380V 3PH |
Name | Brand | Qty |
Machine body | KF Laser New Design 3.0 | 1 SET |
Laser source | Raycus/MAX | 1 SET |
Laser Head | Chaoqiangweiye Sup20S/23S | 1 SET |
Laser Controller | Chaoqiangweiye | 1 SET |
Water chiller | S&A | 1 SET |
Control cabinet | KF Laser | 1 SET |
Wire feeder | Chaoqiangweiye | 1 SET |
Protective helmet | OD.8 | 1 PAIR |
Protective glasses | OD.6 | 1 PAIR |
ToolBox | KF Laser | 1 SET |
Welding Nozzle | – | 10 PCS |
Protective lens | – | 10 PCS |
Maintenance Manual | – | – |
A: In order to recommend you the most suitable machine model, just tell us below information
1)What is your material
2)The size of material
3)The thickness of material
4)Fiber laser cutter for metal
A:1)Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
2)We start making standardized machines after receiving 30% of the payment, inspect the machines after completion, and finally collect the 70% balance before shipping.
A:1)We provide free training in our factory
2)We provide free online after-sales service
3)We have complete installation instructions and video tutorials
4)Door-to-door service charges are based on region and aircraft model
5)Provide three-year warranty, except for consumable parts, direct replacement for non-human damage
1):Clean the optical lens: Clean the optical lens regularly to maintain the beam quality.
2):Check the gas supply: Make sure the gas supply system is normal to prevent the cutting quality from being affected.
3):Lubricate the moving parts: Lubricate the guide rails and lead screw regularly to ensure the smooth operation of the moving parts.
4):Replace the chiller’s purified water every month. If it’s below zero in winter, remember to add antifreeze.
