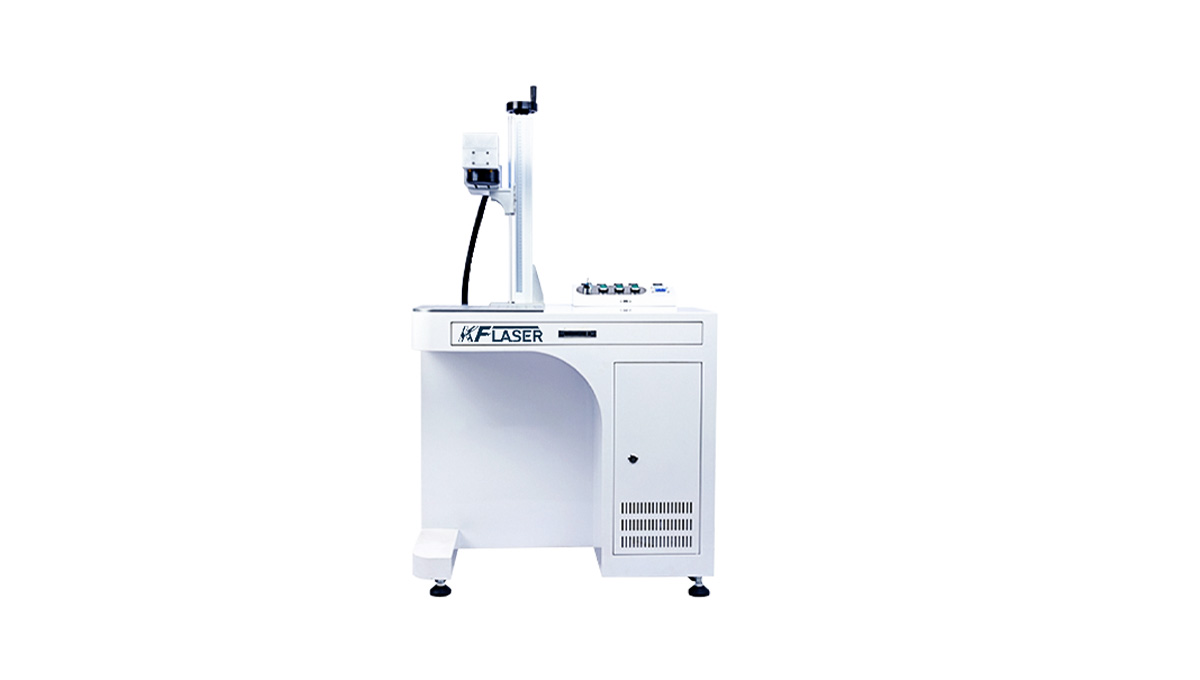

Tabletop laser marking machine;100w;the best

Brand: KF Laser
Model: KFM series
Catalog: Laser marking machine
Warranty: 2 Years
Delivery time: 7 Working Days
Payment: Alibaba trade assurance, T/T, Western union, L/C

Tabletop laser marking machine KFM Series - Video Display

Play Video

Tabletop laser marking machine KFM Series - Details Picture

1D aluminum alloy workbench

With set screw hole
High precision table

Raycus laser generator

High brand recognition
High beam quality
Compact construction
High photoelectric conversion efficiency
Center wavelength 1064±5 nm
100000 hour service life

Embedded laser intelligent scanning system

Independent computer control
Super desktop terminal
Precise positioning and HD marking
U disk import and variety of interface

Sino-galvo brand galvonometer

Capable of fast movement, enabling high-speed marking
Galvanometer system, positioning accuracy can reach ±0.001mm
Strong flexibility, suitable for marking a variety of materials and complex patterns
Non-contact processing to protect raw materials

Manual adjustment column

Paired with manual focus
Manual adjustment, simple operation and low failure rate
Standard height: 500mm
Optional height:800mm 1200mm

A variety of fixtures are available to meet various marking needs

Tabletop laser marking machine KFM Series-Technical Parameters

Model	KFM
*Dimension (LWH)*	8509001180mm
Weight	130KG
Power	20-200W
Laser Wavelength	1064NM
Cooling type	Air cooling
Response time	0.5ms
Repeating Precision	±0.001mm
Working voltage	220v 1PH

Tabletop laser marking machine KFM Series - Packing List

Name	Brand	Qty
Machine body	Integrated shell	1 SET
Laser source	Raycus	1 SET
Laser Head	Sino-galvo brand galvonometer	1 SET
Laser Controller	JCZ	1 SET
Water chiller	Built-in Air cooling	1 SET
Protective glasses	OD.6	1 PAIR
Focal length adjustment spacer	KF laser	1 SET
Hexagon socket tool set	–	1 SET
Lens cleaning kit	–	1 SET

Tabletop laser marking machine KFM Series - Marking Samples

Tabletop laser marking machine KFM Series - Purchasing Process

Tabletop laser marking machine KFM Series - After-Sales Service Process

Tabletop laser marking machine KFM Series - FAQ

Q: How can I choose the most suitable fiber laser marking machine?

A: In order to recommend you the most suitable machine model, just tell us below information

1)What is your material

2)Depth of marking required

3)Maximum marking working area

4)Marking surface requirements, such as needing to mark stainless steel with color, require a MOPA laser source

Q: Is it better to have a larger marking working area?

A: No, different marking ranges are suitable for different jobs.

1)Large scenes will weaken some of the laser intensity when the marking range increases

2)Small scenes are good for focusing, and lasers are more powerful

3)Maximum marking working area

4)If you want to use it for engraving and cutting, you can simply configure a small field lens below 110×110 to increase the efficiency of cutting or engraving.

Q: Payment terms?

A:1)Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

2)We start making standardized machines after receiving 30% of the payment, inspect the machines after completion, and finally collect the 70% balance before shipping.

Q:How to install, use and after-sales?

A:1)We provide free training in our factory

2)We provide free online after-sales service

3)We have complete installation instructions and video tutorials

4)Door-to-door service charges are based on region and aircraft model

5)Provide three-year warranty, except for consumable parts, direct replacement for non-human damage
